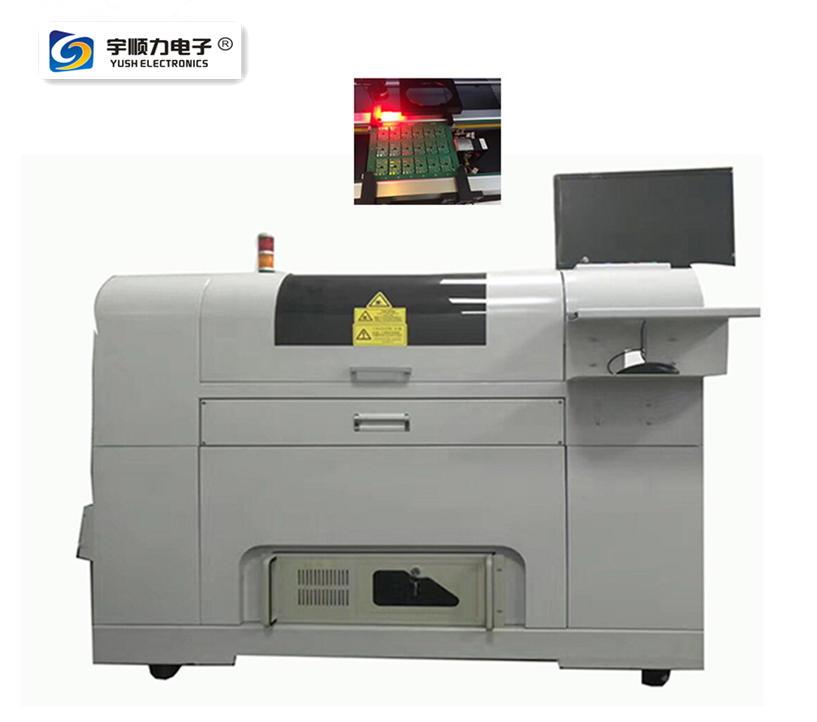

激光切割機，雙平臺，大幅度提高生產效率，是專為FPC和PCB加工的設備。高效 FPC/PCB外形切割，鉆孔及覆蓋面開窗，指紋識別芯片加工，TF內存卡分板，手機攝像頭模組切割，二維碼的打碼等應用，分塊，分層，指定塊或選擇區域切割并直接成型，切割邊緣整齊圓順，產品可以以矩形排列多個自動定位切割，采用國際一線品牌的固態紫外線激光機。
Laser cutting machine, dual platform, greatly improve production efficiency, is specially for FPC and PCB processing equipment. High efficiency FPC / PCB shape cutting, drilling and covering surface windowing, fingerprint identification chip processing, TF memory card board division, mobile camera module cutting, two-dimensional code printing and other applications, block, layer, designated block or selected area cutting and direct molding, cutting edge is neat and smooth, products can be arranged in rectangular arrangement, multiple automatic positioning cutting, using solid-state ultraviolet excitation of international first-line brand Optical and mechanical.
高精度，低漂移的振鏡與快速的無鐵芯直接電機系統平臺組合，在快速切割同時保持微米量級的高精度，無需人工操作，操作簡單，實現同類型一鍵式模式，大大提高生產效率。廢氣處理系統；吸風系統可以將切割廢氣全部消除，避免了對操作人員的危害和對環境的污染。自動化程度高；振鏡自動校正，自動調焦，全程實現自動化，采用激光位移傳感器自動調整焦點到臺面的高度，實現快速對接。功能強大的操作系統，簡單方便。
High precision, low drift galvanometer combined with rapid coreless direct motor system platform can keep micron level high precision in fast cutting, without manual operation, easy to operate, realize the same type of one key mode, and greatly improve the production efficiency. Exhaust gas treatment system; suction system can eliminate all cutting waste gas, avoiding the harm to operators and environmental pollution. High degree of automation; galvanometer automatic correction, automatic focus, the whole process of automation, using laser displacement sensor to automatically adjust the height of focus to the table, to achieve rapid docking. Powerful operating system, simple and convenient。
| NO | 項目 Item | 技術參數 technical parameter |
| 1 | 型號 Model | YSV-6A |
| 2 | 主機尺寸 Host size | 1550mm*1550mm*1700mm |
| 3 | 激光機重量 Laser weight | 2000KG |
| 4 | 激光機供電電源 Laser power supply | AC220V/3.5KW |
| 5 | 激光源 Laser source | 紫外激光器UV Laser |
| 6 | 激光器 Laser | 美國光波 American Lightwave |
| 7 | 材料厚度 Material thickness | ≤1.2mm（視材料而定） |
| 8 | 掃描速度 Scanning speed | 1-900mm/ms |
| 9 | 整機精度 Overall accuracy | ±20μm |
| 10 | 平臺定位精度 Platform positioning accuracy | ±2μm |
| 11 | 平臺重復精度 Platform repeat accuracy | ±2μm |
| 12 | 切割幅度 Cutting range | 350mm*350mm/350mm(雙平臺) |
| 13 | 切縫寬度 Slit width | 20±5μm |
| 14 | 定位 Location | 自動定位 Automatic positioning |
| 15 | 補償 compensate | 自動補償漲縮 Automatic compensation for fluctuation |
| 16 | 聚焦光斑直徑 Focusing spot diameter | 20±5μm |
| 17 | 環境溫度/溫度 Ambient temperature / temperature | 20±2度/<60% |
| 18 | 振鏡掃描區域 Galvanometer scanning area | 50mm*50mm |
| 19 | 必要硬件和軟件 Necessary hardware and software | 含PC和CAM軟件 Including PC and CAM software |
| 20 | 速度 speed | X/Y軸最大空程速度（mm/s）800 Z軸最大空程速度（mm/s）150 |
| 21 | 工作平臺 Working platform | 雙平臺切換 Dual platform switching |
| 22 | 粉塵處理 Dust treatment | 煙霧凈化處理系統 Smoke purification system |
| 23 | 二維碼功能 QR code function | 打二維碼功能最小尺寸2MM X 2MM（自動生成不重復） |
| 24 | 設備特殊性能 Special performance of equipment | 能夠達到無塵室環境使用要求 It can meet the requirements of clean room environment |
調取訂單模式，實現自動切割 Call order mode to realize automatic cutting
1、切割過程跟生產型號和數量結合，依據PMC計劃生產
The cutting process is combined with the production model and quantity, and is produced according to PMC plan
2、避免出現超前生產和產能不清晰
Avoid lead production and unclear capacity
3、避免非生產過程中修改程序
Avoid program modification during non production process
4、實現人與機分離
Separation of human and machine
二維碼自動調取程序 QRcodeautomaticretrievalpogram
1、通過治具二維碼可以直接調取程序，方便，簡單，不出錯
Through the fixture QR code can directly access the program, convenient, simple, error free
2、產品切換智能化
Intelligent product switching
CCD掃描功能 CCDscanningfunction
1、業內領先的PCBA整板掃描功能，改變了傳統視覺指引
The industry-leading PCBA whole board scanning function has changed the traditional visual guidance
2、縮短編程時間，路徑實時顯示，修改方便簡單
The programming time is shortened, the path is displayed in real time, and the modification is convenient and simple
銑刀智能系統Millingcutterintelligentsystem
1、根據PCB的厚度調整下刀深度，提高利用率，節省成本
Adjust the cutting depth according to the thickness of PCB, improve the utilization rate and save the cost
2、依據產品需要定義銑刀使用標準
Define the use standard of milling cutter according to product requirements
3、更換銑刀，無需要重做或修改程序，點擊轉換即可輕松實現
It is easy to change the milling cutter without changing it
工業4.0-MES系統 Industry4.0-MESsystem
1、服務器數據自動調整
Automatic adjustment of server data
2、上傳機臺數據及生產數據
Upload machine data and production data
3、實時監測設備狀態
Real time monitoring of equipment status
